18,000 BTU Quick Connect System, 230V

Model #DNMSHQC18

Delivering comfort where you need it most … we’re up for the challenge. The 18,000 BTU Quick Connect Mini-Split with Heat Pump from Denali Aire is a sleek fit for your style and space, providing you the most innovative ductless cooling solution. Designed to cool large spaces up to 750 sq. ft., the Denali Aire Quick Connect Mini-Split delivers maximum comfort, efficiency and temperature control for a single space, making it the perfect solution for year-round comfort with primary cooling on those humid, summer days and for supplemental heating for chilly days. Zoned comfort has never been easier and more affordable than with this Energy Star-rated system, and thanks to our innovative line set attachments, there’s no extra refrigerant required or system evacuation necessary — meaning you can easily set-up this system within hours. Game changer!
FEATURES

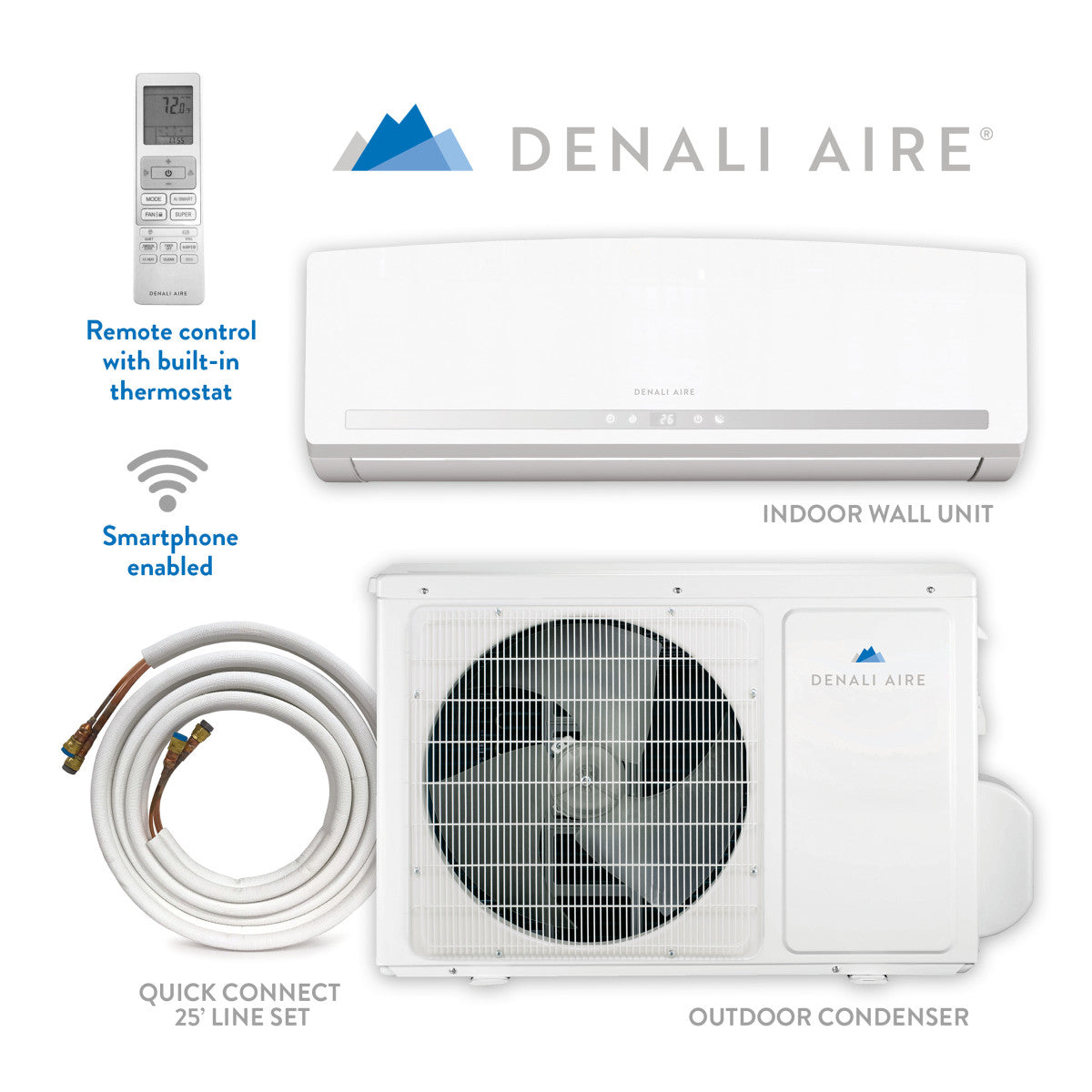

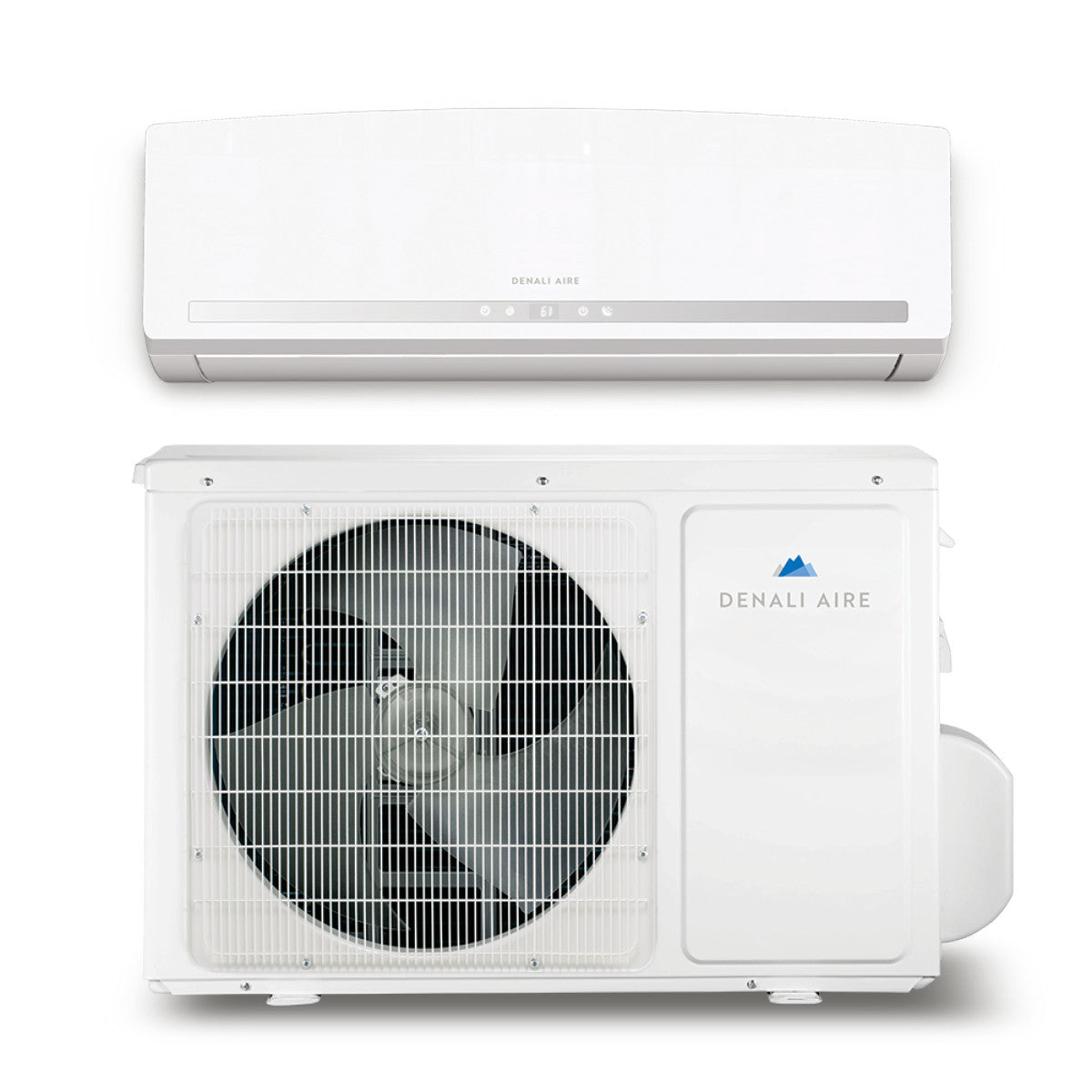

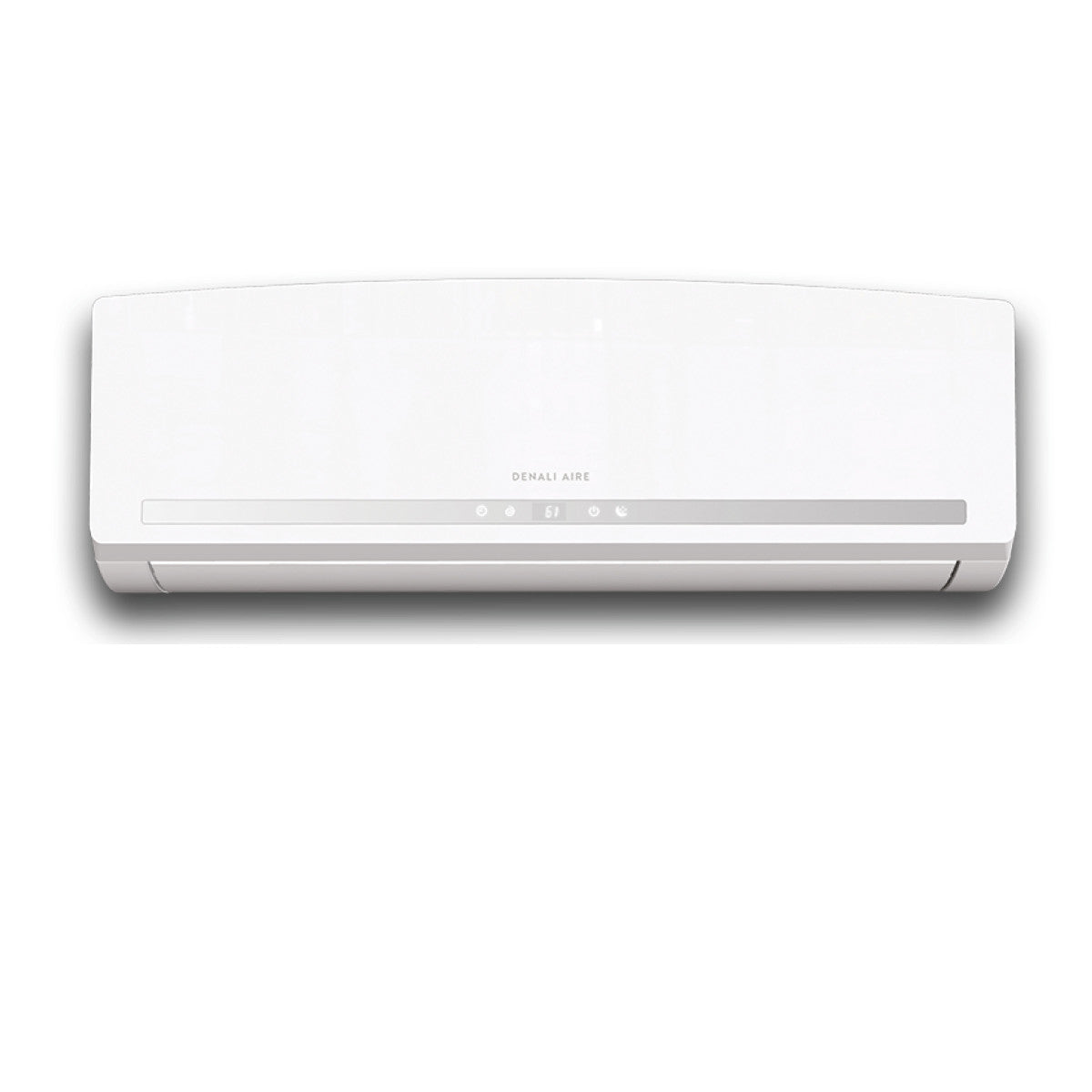

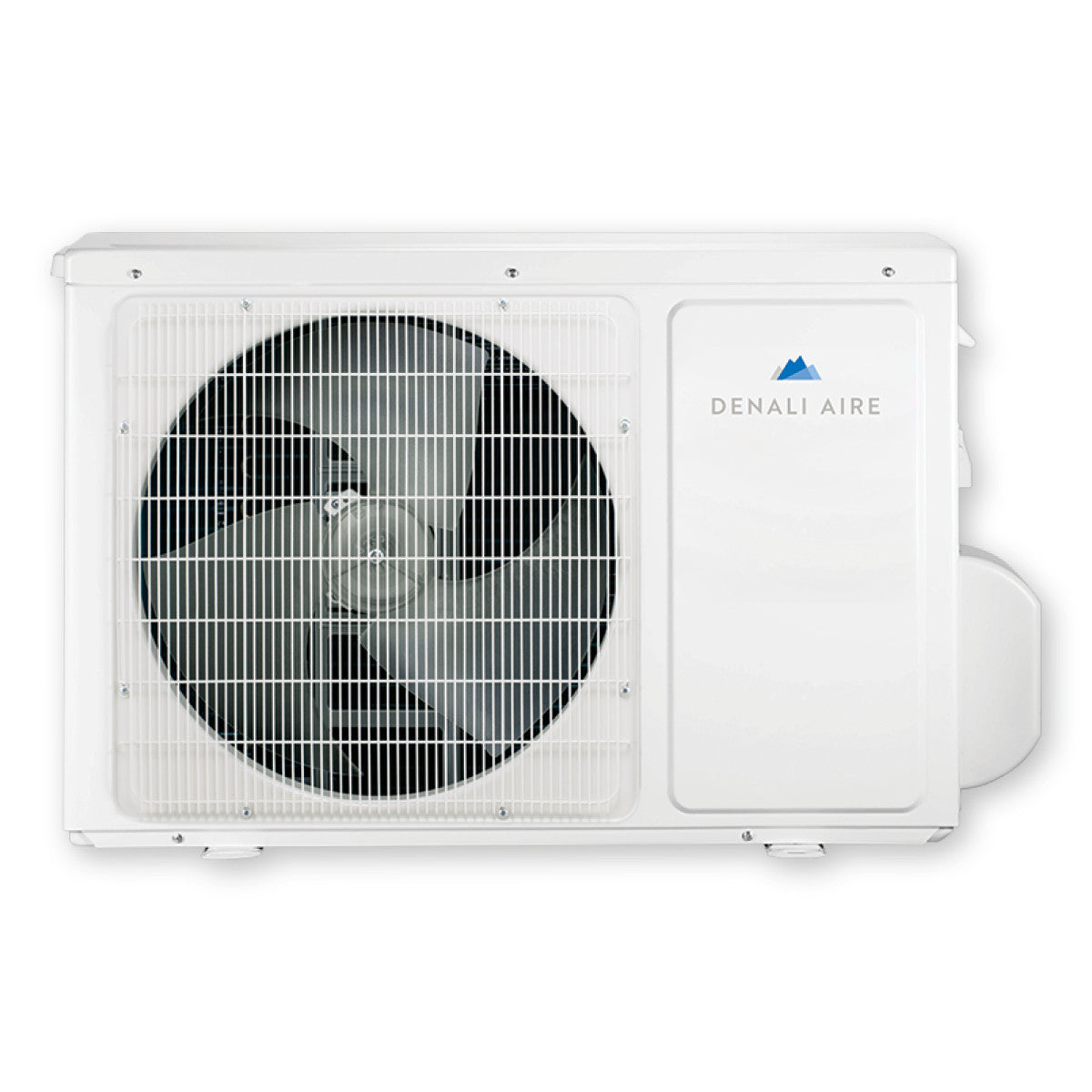

• 18,000 BTU Quick Connect Mini-Split built for bringing comfort to single-zone environments up to 750 sq. ft. System includes high-wall indoor air handler, mounting bracket, outdoor condenser, cable & line set with quick connect adaptors and installation accessories.

• AHRI certified and Energy Star rated with a high-efficiency 23.3 SEER/22.5 SEER2.

• Perfect for the at-home installer, this Denali Aire Quick Connect Mini-Split includes revolutionary Quick Connect adaptors for ultra-easy installation, no need to charge or evacuate refrigerant.

• Control room temperature, set fan speeds and create programmable, intelligent modes for when you're at home or away, all from your mobile device with the convenient mobile app.

• System includes a full-function remote control with a built-in thermostat that puts you in control of your comfort from anywhere in the room.

• You're in control of your comfort with 7 indoor fan speeds, adjustable vertical and horizontal swing louvers, a programmable 24-hour timer and convenient smart, super and auto functions.

• Sleek high-wall indoor air handler features a reusable and eco=friendly filter. Just slide-out and wash with soap and water — no need to purchase replacements.

• System features premium R410A, an energy-efficient and environmentally friendly refrigerant that yields high-performance results.

• The high-performance inverter heat pump is designed to provide efficient operation in a wide range of temperatures, all the way down to 5ׄ°F (-15°C) in cooling mode and -4°F (-20°C) in heat mode.

SPECIFICATIONS

Cooling Capacity (BTU): 18000

Heating Capacity (BTU): 19000

Coverage Area (sq. ft.): 750

Fan Speeds: 7

SEER2: 23.3

HSPF4: 11.6

DIMENSIONS & WEIGHT

Indoor Unit Dimensions (WxHxD)(in.): 42.75 x 12.5 x 9.25

Outdoor Unit Dimensions (WxHxD)(in.): 34 x 25.75 x 12.25

Indoor Unit Weight (lb.): 32.0

Outdoor Unit Weight (lb.): 99.0

ELECTRICAL REQUIREMENTS

Power Supply (V): 230

Maximum Fuse (A): 20.0

No-Hassle Comprehensive Product Warranty

1 Year Full Replacement
